When it comes to general industrial, municipal, commercial and building service pumps, Weinman is widely recognized for quality, efficiency and economy. Weinman pumps are particularly adept in HVAC and water service applications.
Weinman pumping equipment and systems are widely found in boiler feed or booster service, chilled or hot water, cooling tower condensate and sprinkler, ice storage and liquid circulation. General water services include potable water transmission, sump and sewage ejection, municipal and industrial water treatment.

 condensate return unit
Condensate Return Units
Burks and Weinman condensate Units are designed for automatic return of hot water condensation from radiators, coils, etc. to low and high pressure boilers, or for return of water and other liquids to the overhead tanks of industrial gravity circulating systems. All units are shipped complete, ready for fast, easy installation.

Heads To: 300 feet
Flows To: 225 g.p.m.
vertical inline
Inline Vertical
Weinman In-line pumps are specifically designed for heating, air conditioning and industrial applications. Suction and discharge nozzles are located 180° apart on the same centerline for mounting directly in a pipe line. This eliminates critical pipe alignment for ease of assembly and minimum pipe strain. The need for costly foundations is eliminated, which guarantees minimum space requirements.

Heads To: 350 feet
Flows To: 1,500 g.p.m.
non clog

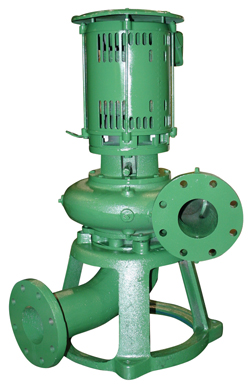

Non-Clog - Dry Pit
Deming and Weinman horizontal and vertical dry pit pumps are compact in design to meet a wide range of service conditions. Solids handling pumps are available in 25 size configurations to meet specific requirements.

Heads To: 250 feet
Flows To: 8,000 g.p.m.
split case
Split Case
Weinman pumps meet a wide variety of service needs. The L series single-stage and LVM vertically mounted pumps provide large capacity general service pumping. Rugged and reliable, they combine mechanical simplicity with sophisticated hydraulic design. The JD Series multi-stage pumps offer reliable, low cost, high head pumping for applications such as boiler feed and booster service. Recognized for their quality, efficiency and economy, Weinman split case pumps meet the design criteria of: ASTM, HI, ANSI, AISI, SAE and AMSE.
Deming Horizontal split-case single stage; double suction, general purpose pump, designed for continuous service handling both hot and cold fluids.

Heads To: 500 feet
Flows To: 7,000 g.p.m.
end suction
End Suction (Frame Mounted /Closed Coupled)
Weinman, Deming, Barnes and Burks versatile, low cost pumps are engineered for use on most phases of liquid handling. These end-suction pumps are heavy duty, general purpose centrifugal pumps with heavy wall castings suitable for many commercial and industrial applications such as condenser, chilled, and hot water systems in HVAC and process secondary pumping. High efficiencies, robust case construction of cast iron, and impeller construction of bronze makes these pumps an ideal selection for applications that require easy-to-maintain, reliable, long lasting pumps.

Heads To: 680 feet
Flows To: 4,000 g.p.m.
sump industrial

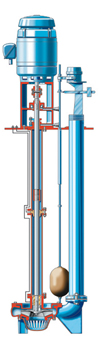

Sump Industrial
Deming and Weinman General Service Sump Pumps are designed to handle various fluids from drainage water or any liquid waste containing small, non-fibrous solids to larger industrial processes. Their advanced design provides trouble-free service and low-cost operation.

Heads To: 160 feet
Flows To: 1,600 g.p.m.
